Front Cable

FRONT

1. Disconnect the negative battery cable.









2. Remove the drivers seat Seat - Removal.





3. Remove the left sill plate.
4. Remove the left B-pillar trim panel B-Pillar Trim Panel-Removal.





5. Remove the console rear cover (2) or the DVD player (if equipped).





6. Remove center console (1) ,Floor Console - Removal.










7. Remove the rear seat bottom Seat - Removal.










8. Disconnect the modules electrical connectors (1).
9. Remove the module mounting nuts from the bracket (2).

10. Remove the rear sill plates.
11. Pull and roll the rear carpet upwards to gain access to the front park brake cable.









12. Lock out the front park brake cable.









13. Remove the front cable (2) at the equalizer (1).

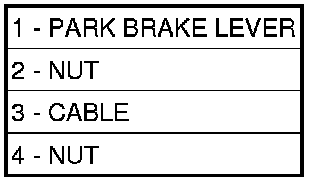

14. Remove the 2 front cable routing clamps and the 3 nuts (2AND4).
15. Remove the front cable at the rear floor bracket.
16. Remove the front cable (3) at the hand lever (1).
17. Remove the front cable at the hand lever mounting bracket.
