Front Cable

FRONT










1. Install the front cable (3) at the hand lever mounting bracket (1).
2. Install the front cable (3) at the hand lever (1).
3. Install the front cable at the rear floor bracket.

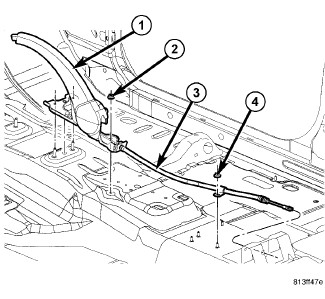

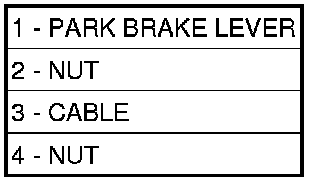

4. Install the 2 front cable routing clamps and the 3 nuts (2AND4).

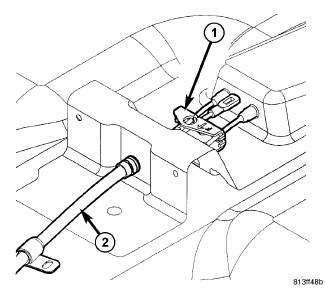

5. Install the front cable (2) at the equalizer (1).

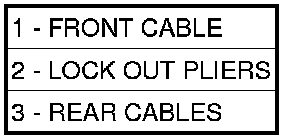

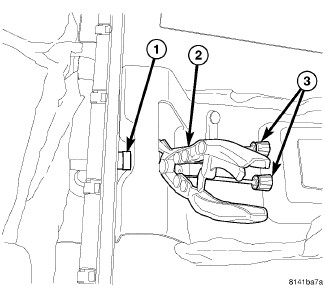

6. Unlock the front park brake cable (1).

7. Install the rear carpet back in place.

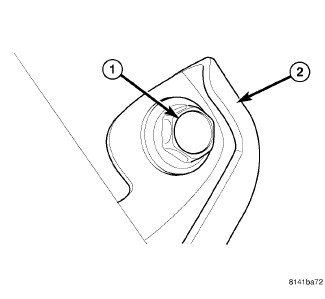

8. Install the module bracket (2) mounting nuts.
9. Reconnect the module electrical connectors (1).

10. Install the rear sill plates.









11. Install the drivers seat Seat - Installation.





12. Install the left B-pillar trim panel B-Pillar Trim Panel-Installation.

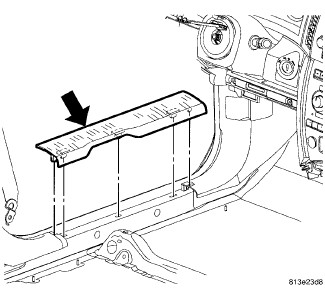

13. Install the left sill plate.

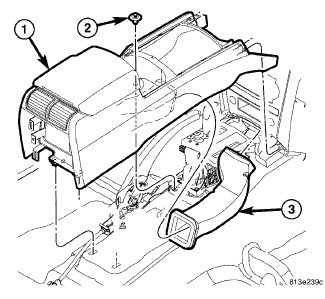

14. Install the center console (1) Floor Console - Installation.

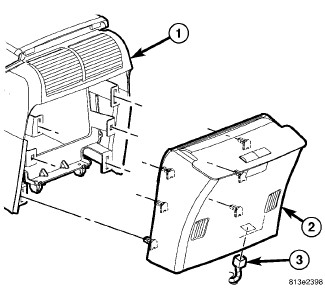

15. Install the console rear cover (2) or the DVD player (if equipped).










16. Install the rear seat bottom Seat - Installation.
17. Reconnect the negative battery cable.
