Brake Master Cylinder Reservoir - Installation

INSTALLATION










1. Install the fluid level sensor (1) into the reservoir (2) if removed.










CAUTION: Do not use tools to install the o-rings. Tools may cut, or tear the o-rings. Install the o-rings using finger pressure only.

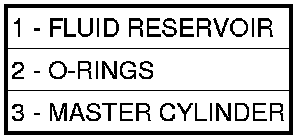

2. Lubricate new o-rings (2) with clean brake fluid.

CAUTION: Do not rock the reservoir during installation.

3. Start reservoir in o-rings then press the reservoir straight down to seat the reservoir into the cylinder o-rings.
4. Verify retaining tabs are seated.










5. Install the wire connector to the brake fluid level sensor (2).
6. Remove brake pedal prop rod.
7. Fill master cylinder.
