Brake Master Cylinder - Description

DESCRIPTION

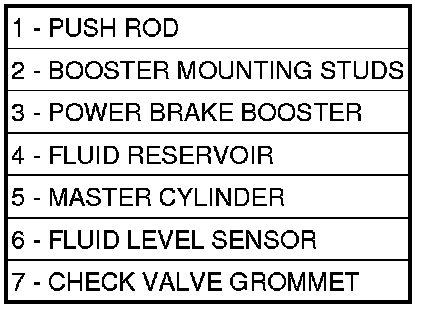

The master cylinder body (5) is made of aluminum and contains a primary and secondary piston assembly. The cylinder body including the piston assemblies are not serviceable. If diagnosis indicates an internal problem with the cylinder body (5), it must be replaced as an assembly. The master cylinder has a removable reservoir (4) and fluid level indicator (6). The reservoir, reservoir grommets, reservoir cap and fluid level switch are the only replaceable parts on the master cylinder.
