Front

FRONT





1. Raise and support vehicle.
2. Remove wheel and tire assembly.
3. Drain small amount of fluid from master cylinder brake reservoir with clean suction gun.

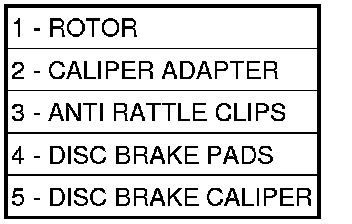

4. Remove the 2 caliper mounting bolts (2).
5. Compress the caliper and remove from the adaptor (4).
6. Secure caliper (1) to nearby suspension part with wire. Do not allow brake hose to support caliper weight.










7. Remove the inboard and outboard brake pads (4) from the caliper adapter (2).
8. Remove the anti-rattle clips (3) from the brake caliper adapter (2).
