Non-Adjustable Pedals

NON-ADJUSTABLE PEDAL

1. Disconnect the negative battery cable.

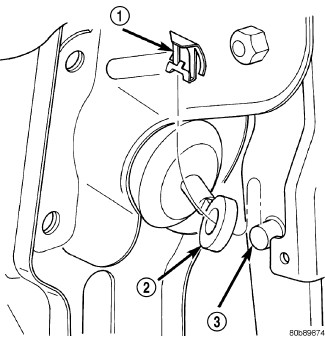

2. Remove retainer clip (1) that holds booster to pedal pin (3).
3. Remove the power brake booster Power Brake Booster - Removal.










4. Lock the steering wheel into place.
5. Remove the 2 intermediate shaft bearing nuts (1).

6. Remove the lower steering shaft pinch bolt.
7. Remove the lower steering shaft off the column.
8. Loosen the brake pedal sled upper nuts
9. Remove the brake pedal assembly from the vehicle.
