Adjustable Pedals

ADJUSTABLE PEDAL










1. Install the pedal assembly (2) to the vehicle.

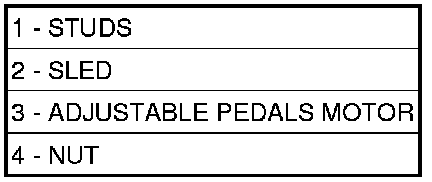

2. Tighten the upper brake pedal sled nuts (4).

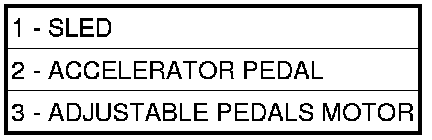

3. Install and tighten the 2 accelerator pedal (2) nuts to 28 Nm ( 21 ft. lbs.).
4. Reconnect the accelerator pedal cable.
5. Reconnect the pedal motor electrical connector.










6. Install the lower steering shaft to the column.
7. Install the lower steering shaft pinch bolt at the column.
8. Unlock the steering wheel.
9. Install the 2 intermediate shaft bearing nuts (1).
10. Install the power brake booster Power Brake Booster - Installation.
11. Reconnect the negative battery cable.
12. Fill and bleed brake system.
