Home >> Jeep Truck >> 2009 >> Commander 4WD V8-4.7L >> Repair and Diagnosis >> Body and Frame >> Sound Proofing / Insulation >> Locations

Sound Proofing / Insulation: Locations

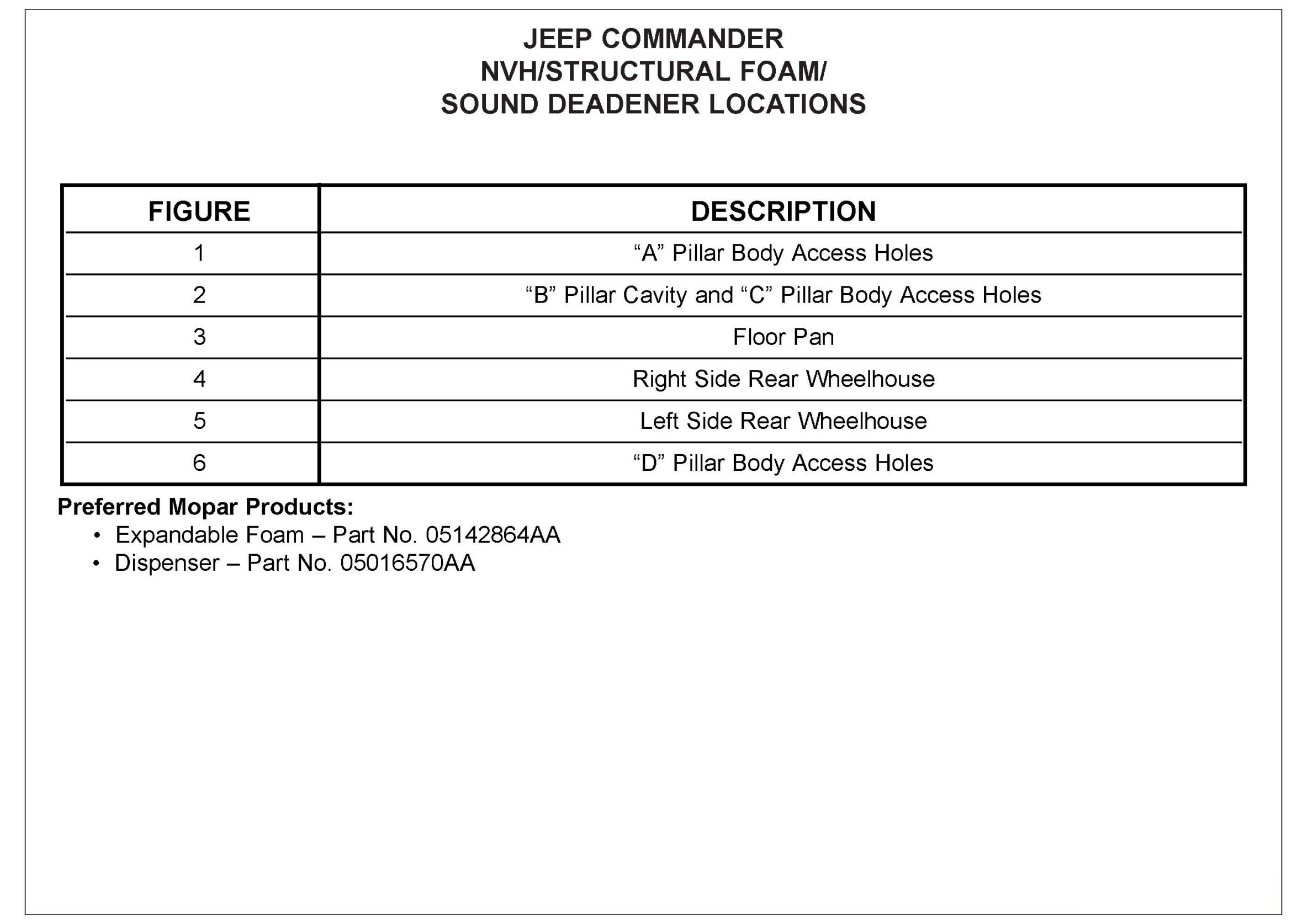

JEEP COMMANDER NVH/STRUCTURAL FOAM/SOUND DEADENER LOCATIONS
