Home
>>
Jeep Truck
>>
2009
>>
Commander 4WD V8-4.7L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Sensors and Switches - Body and Frame
>>
Seat Temperature Switch
>>
Service and Repair
>>

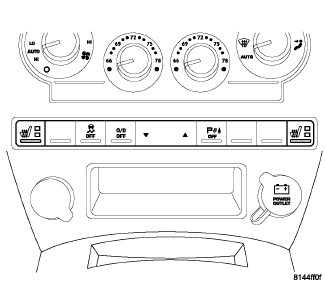

Heated Seat Switch - Removal
>>
Front
Front
REMOVAL
1.
Disconnect and isolate the battery negative cable.
2.
Remove the instrument panel center bezel.
3.
Remove the lower instrument panel switch pod fasteners.
4.
Remove the lower instrument panel switch pod from the vehicle.
