Home >> Jeep Truck >> 2009 >> Commander 4WD V8-4.7L >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Temperature Element >> Diagrams >> Left Rear Seat Cushion Heater (Rear Heated Seats) (Component Side) 2 Way

Left Rear Seat Cushion Heater (Rear Heated Seats) (Component Side) 2 Way

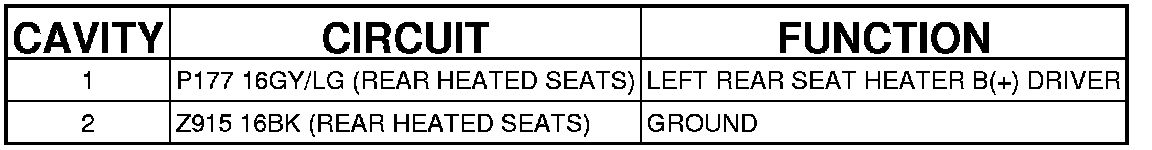

Connector (REAR HEATED SEATS) - (COMPONENT SIDE) 2 WAY

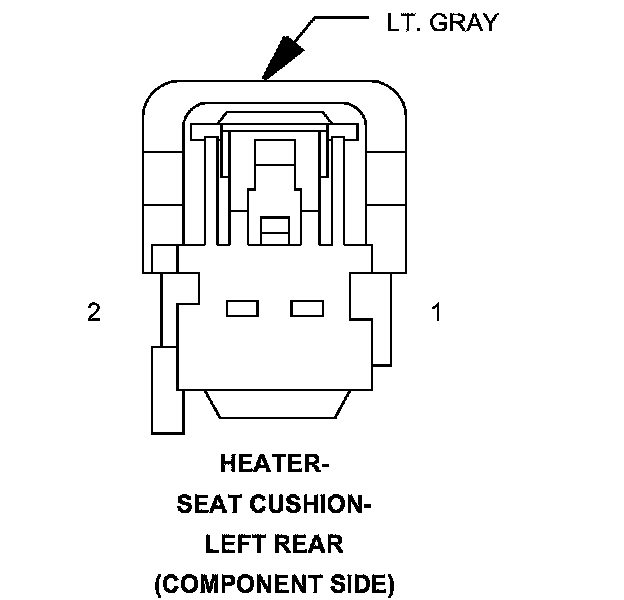

HEATER-SEAT CUSHION-LEFT REAR (REAR HEATED SEATS) - (COMPONENT SIDE) 2 WAY
