Seat, Front






DESCRIPTION

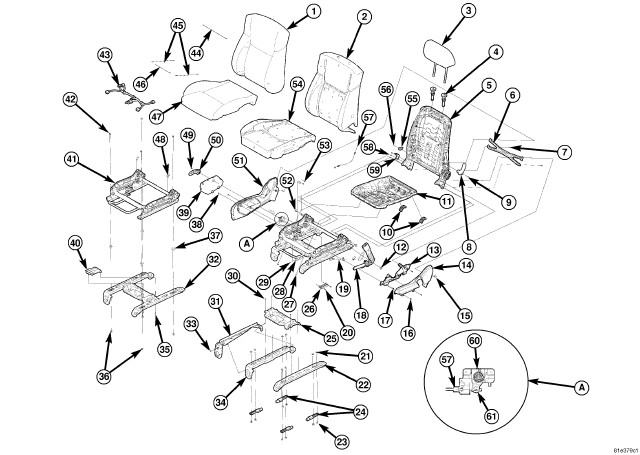

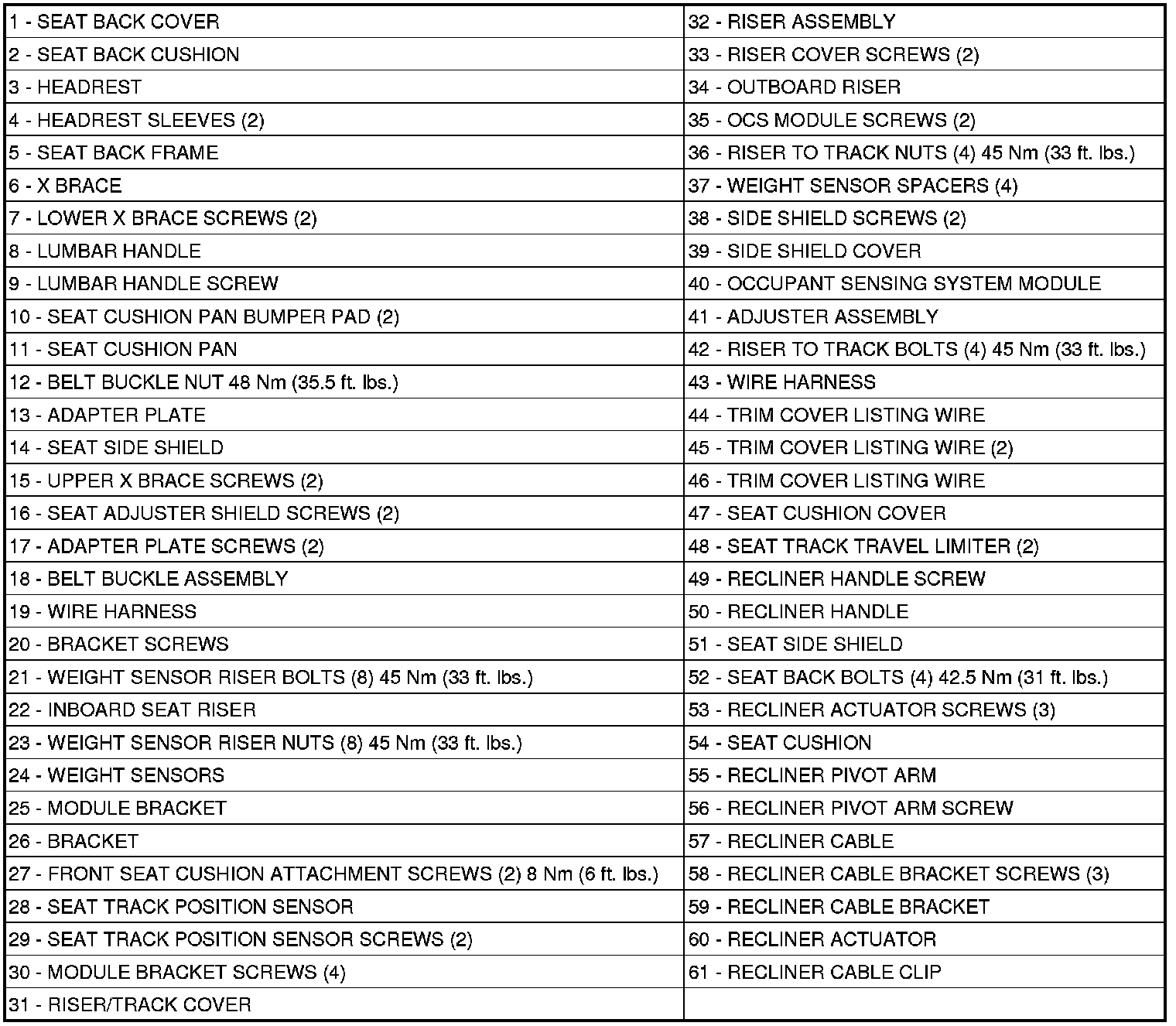

DRIVER SIDE EIGHT WAY POWER SEAT








PASSENGER SIDE FOUR WAY POWER SEAT

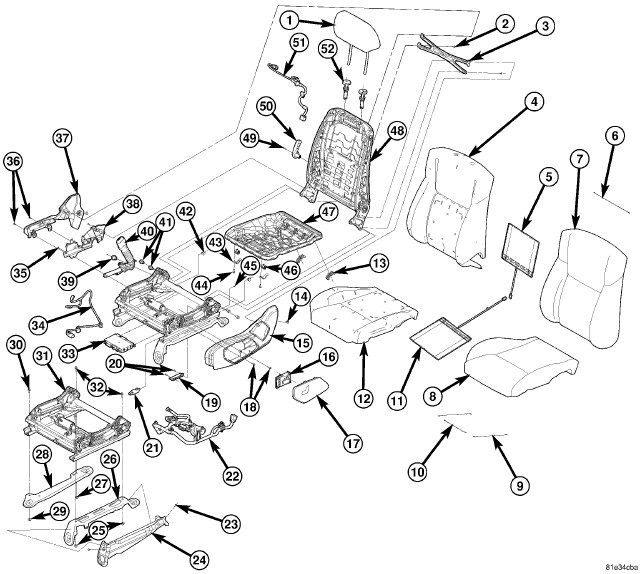

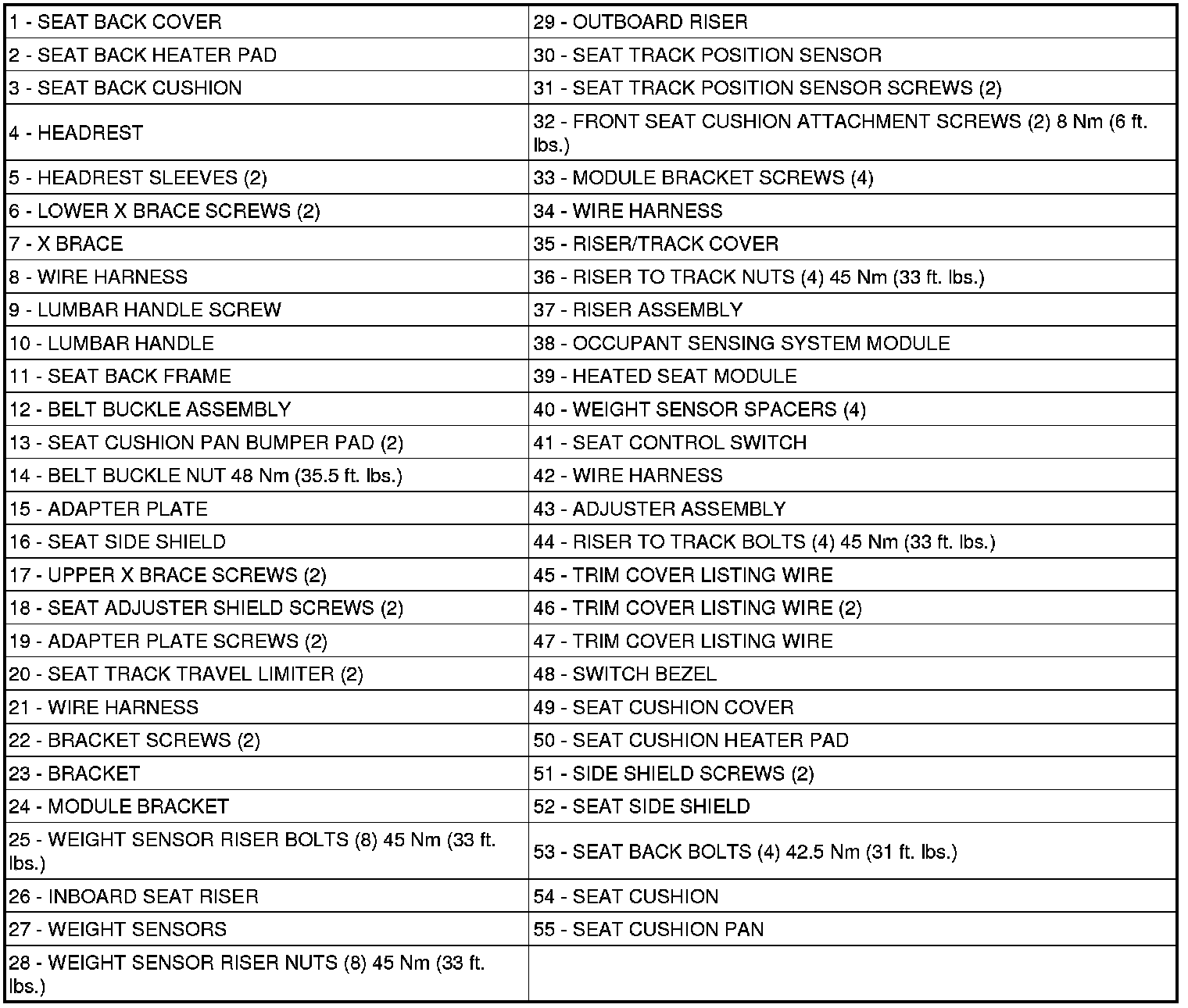

Passenger Side Four Way Power Seat









PASSENGER SIDE TWO WAY MANUAL SEAT

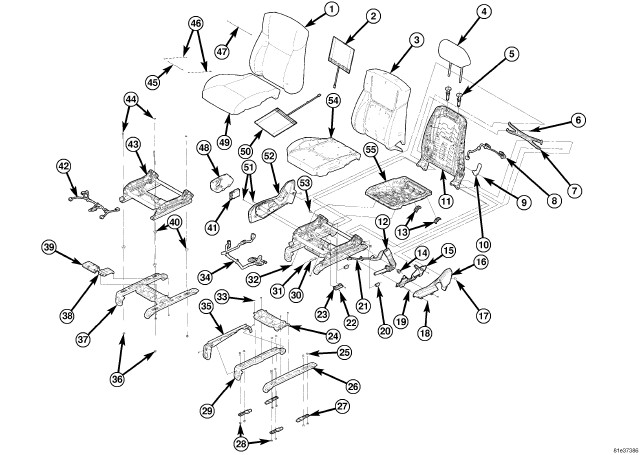

Passenger Side Two Way Manual Seat
