Sunroof Glass Guide - Removal

REMOVAL





1. Place the sunroof in the vent position.
2. Remove the sunroof assembly. Sunroof - Removal
3. Remove the motor. Sunroof Motor - Removal
4. Remove the glass. Sunroof Glass - Removal
5. Remove the wind deflector. Wind Deflector - Removal

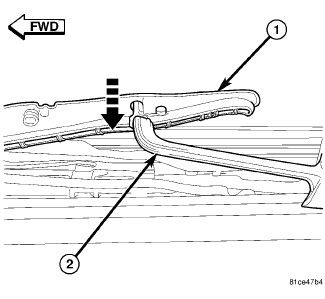

6. Separate the drain channel arms (2) from the guide mechanisms (1) one at a time.

CAUTION: Do not pry the channel arms apart at the same time or you could break the drain channel.

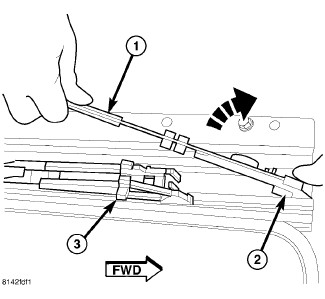

7. Slide the drain channel rearward out of the way.

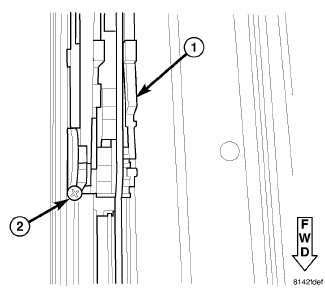

8. Remove the hard stop screw from the frame.

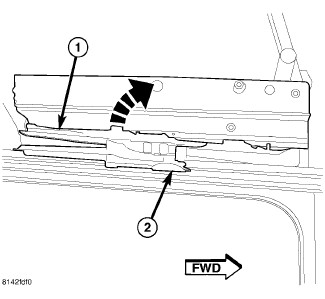

9. Push the drive cable and guide plate forward past the hard stop screw location until the glass guide comes loose.





10. Rotate the guide (1) up and out of the front beam (3) and release the front foot (2) from the channel guide.
