Sunroof Glass Guide - Installation

INSTALLATION

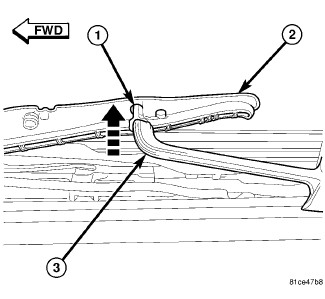

1. With the drive cable plate aligned insert the front foot (2) into the guide channel and engage the feet with the front beam (3).

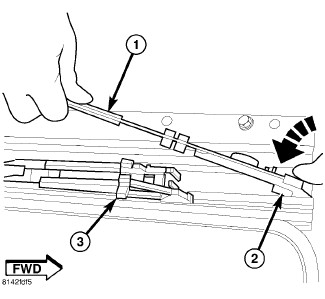

2. Rotate the guide plate (1) inboard until the feet of the guide are engaged into the front beam (2).

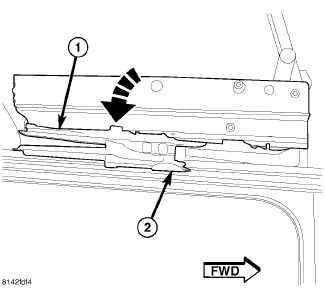

3. Push the guide assembly (1) and drive cable rearward past the hard stop location.
4. Install the hard stop screw (2) and push the drive cable and guide assembly (1) up against the hard stop screw (2).
5. Verify that the opposite guide assembly is also positioned up against the hard stop screw.
6. Install the wind deflector as necessary. Wind Deflector - Installation
7. Install the motor as necessary Sunroof Motor - Installation.




8. Install the drain channel arms (3) into the mechanism (1) holes one at a time with the reinforcements on the inside of mechanism arms (2).

CAUTION: Do not pry the channel arms apart at the same time or you could break the drain channel.

9. Install the sunroof assembly into the vehicle. Sunroof - Installation
10. Perform the sunroof position calibration. . Programming and Relearning
11. Install the glass as necessary. Sunroof Glass - Installation
12. Adjust sunroof glass to fit flush with roof line Adjustments.
13. Verify proper operation of the power sunroof system.
