Sunroof Glass - Removal

REMOVAL





1. Move the glass panel to the full closed position.
2. Slide sunshade rearward to the open position.

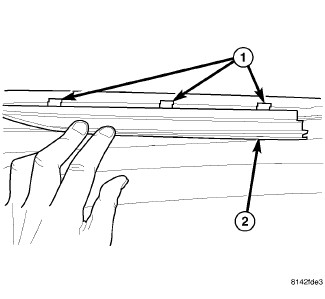

3. Separate the mechanism covers (2) from the tabs (1) on the glass panel.





4. Remove the glass panel screws (3).
5. Lift off glass panel and remove from vehicle.
