Sunroof Motor - Removal

REMOVAL

WARNING: Do not attempt to move or reposition the sunroof glass panel or drive cables with the motor/module removed. Vehicle/sunroof damage or personal injury may result.

WARNING: The sunroof must first be calibrated and the Motor/Module Initialization Procedure must be completed any time a sunroof motor/module is replaced with a new component. Failure to perform this procedure could result in vehicle damage and/or personal injury.Programming and Relearning for the appropriate procedure.

1. Disconnect the battery negative cable.
2. Remove the vehicle headliner, Headliner - Removal.

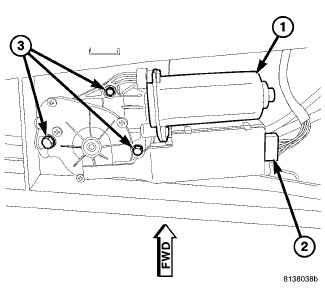

3. Remove the power sunroof motor/module electrical connector (2).
4. Remove the retaining screws (3) and remove the motor/module (1) from the vehicle.
