Sunroof Motor - Installation

INSTALLATION

WARNING: Do not attempt to move or reposition the sunroof glass panel or drive cables with the motor/module removed. Vehicle/sunroof damage or personal injury may result.

WARNING: The sunroof must first be calibrated and the Motor/Module Initialization Procedure must be completed any time a sunroof motor/module is replaced with a new component. Failure to perform this procedure could result in vehicle damage and/or personal injury.Programming and Relearning for the appropriate procedure.

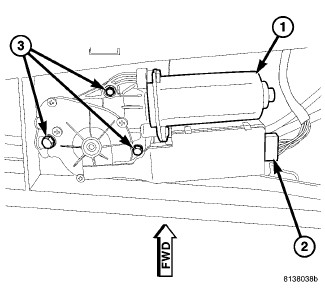

1. Position the power sunroof motor/module (1) in the vehicle.
2. Install the motor/module retaining screws (3). Tighten the screws to 4 Nm (35 in. lbs.).
3. Connect the motor/module electrical connector (2).
4. Partially install the vehicle headliner and connect all remaining sunroof electrical connectors, Headliner - Installation.
5. Connect the battery negative cable.
6. Perform the sunroof position calibration, Programming and Relearning.
7. Perform the Motor/Module Initialization Procedure, Programming and Relearning.
8. Complete the vehicle headliner installation, Headliner - Installation.
9. Verify proper operation of the power sunroof system.
