Sunroof / Moonroof Motor: Diagrams

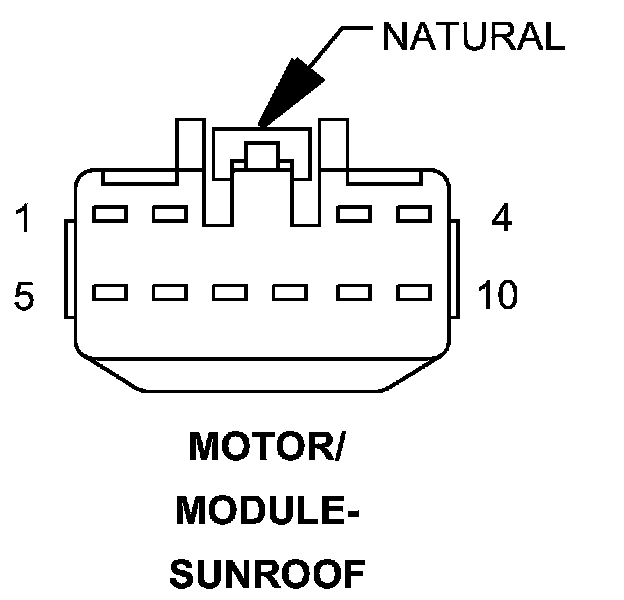

Connector - (SUNROOF) 10 WAY

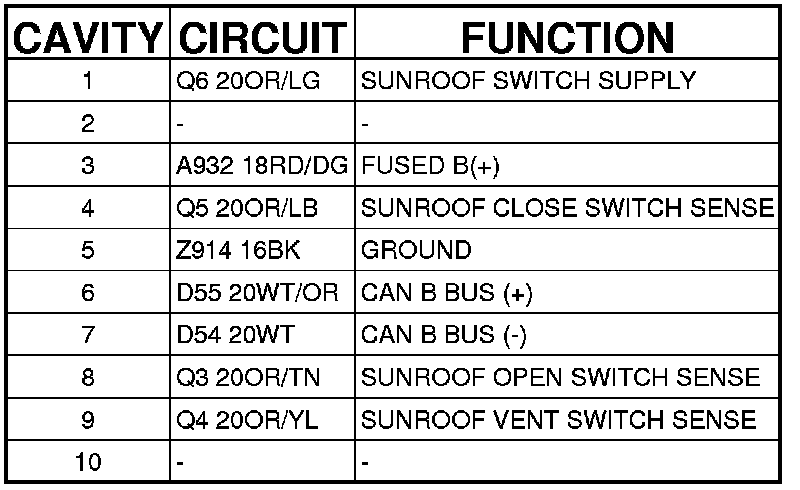

MOTOR/MODULE-SUNROOF - (SUNROOF) 10 WAY
