Sunroof Drain Tube - Installation

INSTALLATION

FRONT HOSES

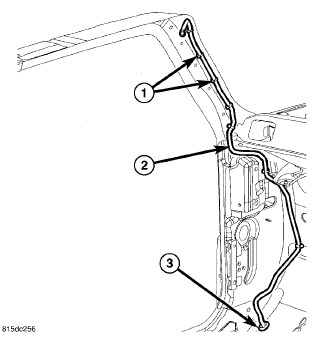

1. Position the lower portion through the grommet in the body (3).
2. Position the hose (2) into all of the support clips (1).

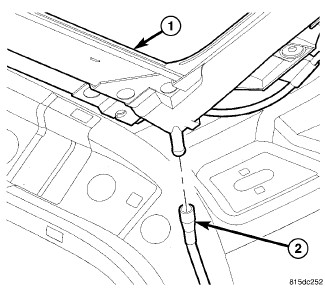

3. Connect the new drain hose (2) to the sunroof housing (1) and test drainage.
4. Install headliner Headliner - Installation.

REAR HOUSING HOSE

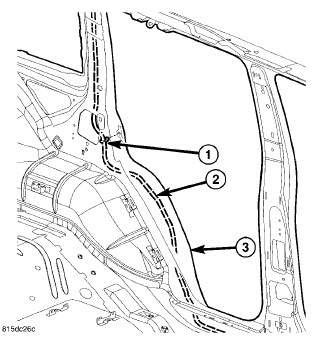

1. Install the rear hose (2) into the body c-pillar (3) and seat the push pin fasteners (1) fully.
2. Position the lower portion through the grommet in the body.

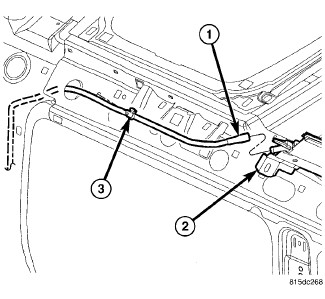

3. Connect the new drain hose (1) to the sunroof housing (2) and test drainage.
4. Install headliner Headliner - Installation.
