Sunroof Drain Channel - Removal

REMOVAL





1. Remove glass panel. Sunroof Glass - Removal

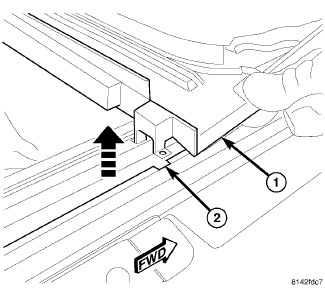

2. Separate the drain channel arms (2) from the guide mechanisms (1) one at a time.

CAUTION: Do not pry the channel arms apart at the same time or you could break the drain channel.






3. Carefully slide the drain channel (1) forward to the notches (2) in the frame and remove from the vehicle.
