Sunroof Drain Channel - Installation

INSTALLATION

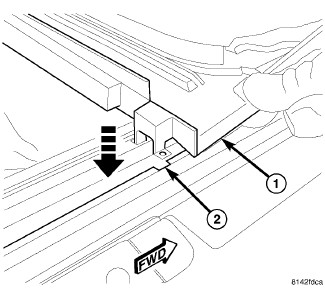

1. Carefully position the drain channel (1) into the notches (2) in the frame and slide rearward.





2. Install the drain channel arms (3) into the mechanism (1) holes one at a time with the reinforcements on the inside of mechanism arms.

CAUTION: Do not pry the channel arms apart at the same time or you could break the drain channel.

3. Install the sunroof glass. Sunroof Glass - Installation
