Luggage Rack - Installation

INSTALLATION

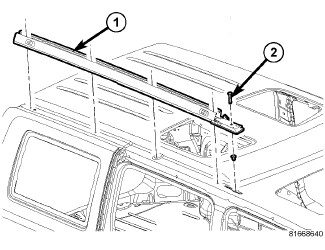

1. Position the roof rack rail (1) onto the roof and align with the screw holes.
2. Install the five screws and tighten to 4.5 Nm (40 in. lbs.) using the following sequence to prevent misalignment of the rail.
a. From the front tighten the second screw.
b. Tighten the rear screw.
c. Tighten the front screw.
d. Tighten the third screw.
e. Tighten the fourth screw.

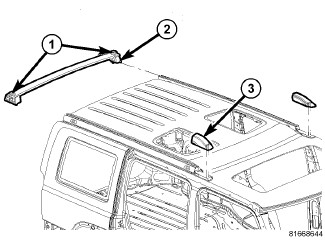

3. Position the front covers (3) and seat fully.
4. Install the cross bars (2) and tighten down the thumb nuts (1), if equipped.





5. On vehicles equipped with rear grab handles (2), position the upper cover (1) into the roof rack rail and seat fully.
6. On vehicles equipped with rear applique (4), position the applique (4) to the end of the roof rack (3).
7. Position the applique onto the D-pillar and seat the support clips fully.
8. Install the two applique push-pin fasteners.
