Passenger Outside Rearview Mirror (Passenger Door Jumper) 16 Way

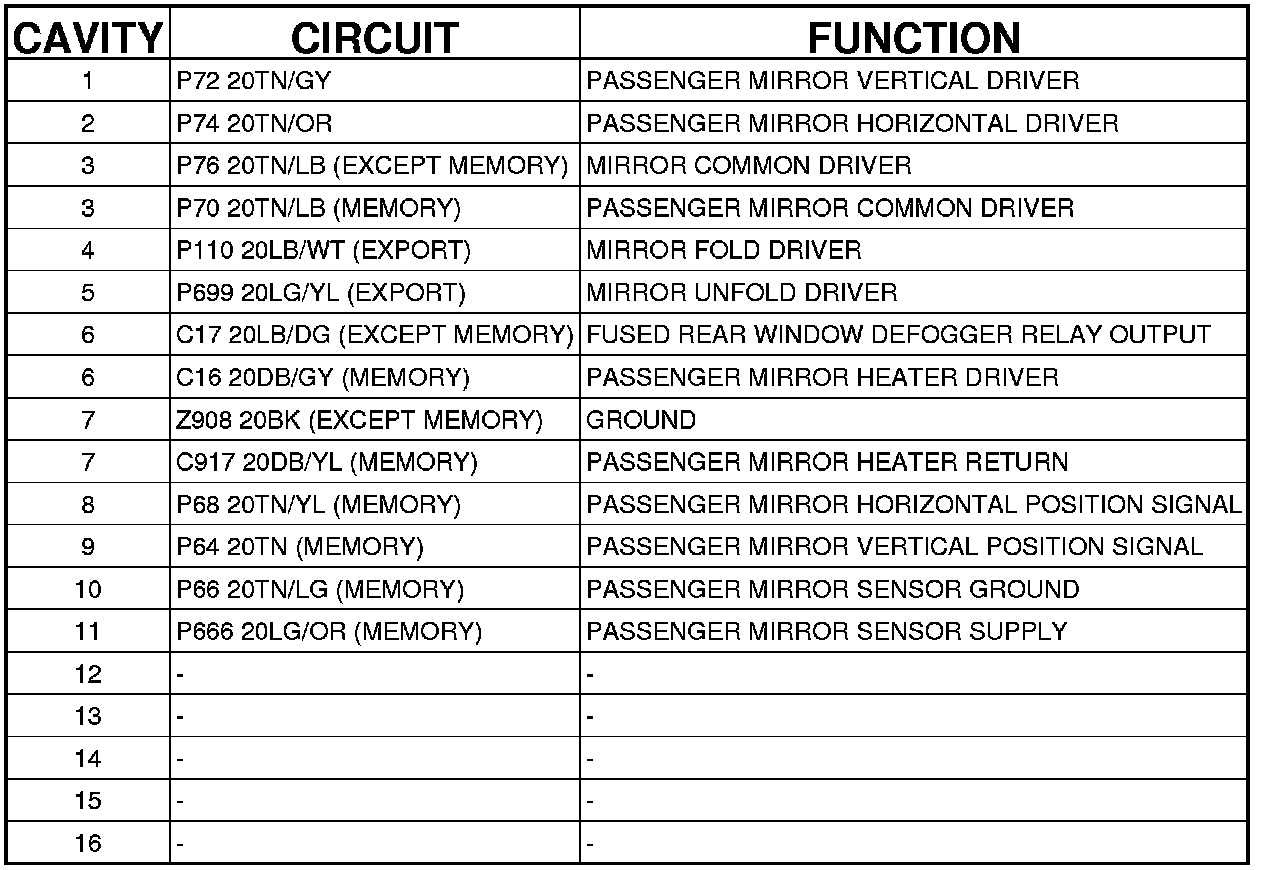

Connector - (PASSENGER DOOR JUMPER) 16 WAY

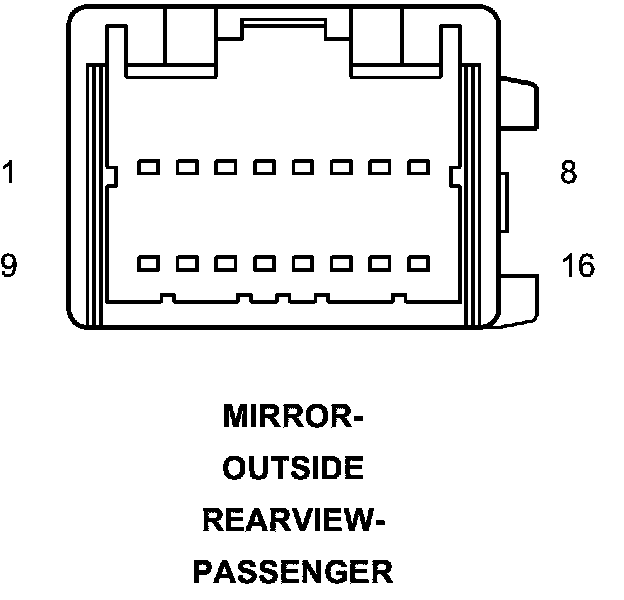

MIRROR-OUTSIDE REARVIEW-PASSENGER - (PASSENGER DOOR JUMPER) 16 WAY
