Inside Rearview Mirror (Hands Free) (Overhead) 16 Way

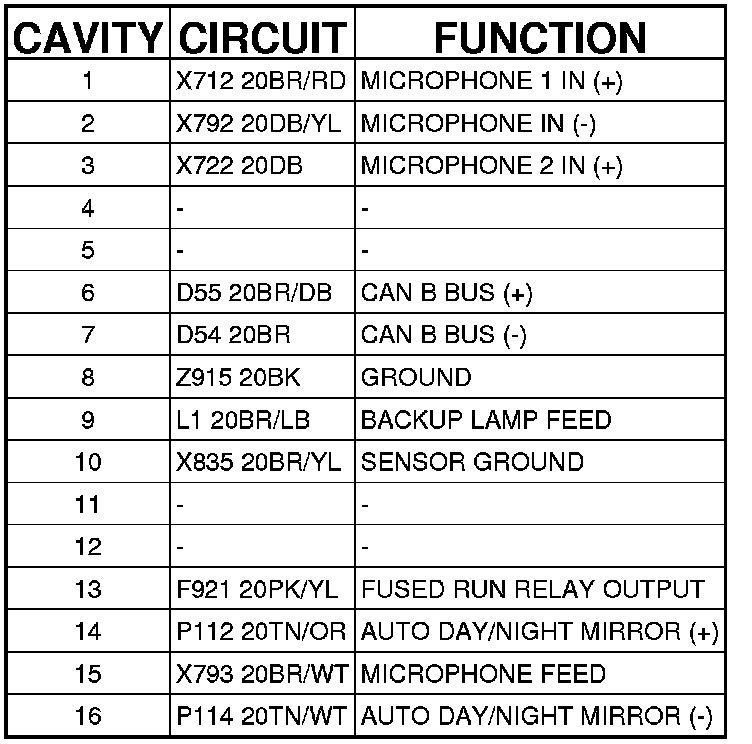

Connector (HANDS FREE) - (OVERHEAD) 16 WAY

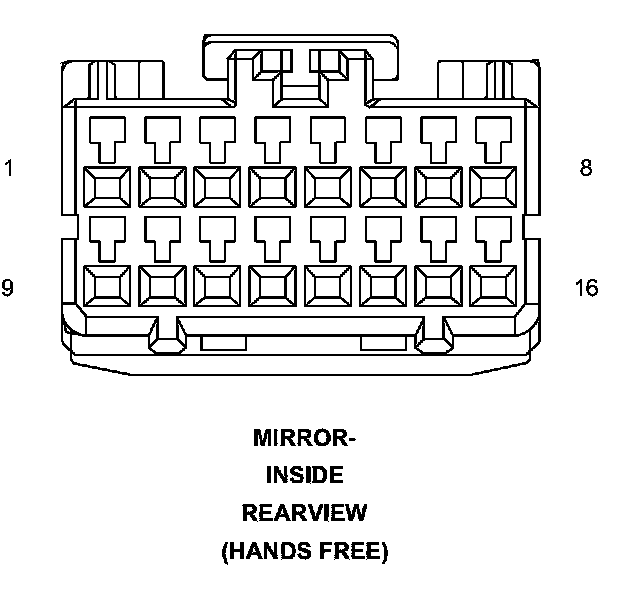

MIRROR-INSIDE REARVIEW (HANDS FREE) - (OVERHEAD) 16 WAY
