Inside Rearview Mirror (Except Hands Free) (Overhead) 7 Way

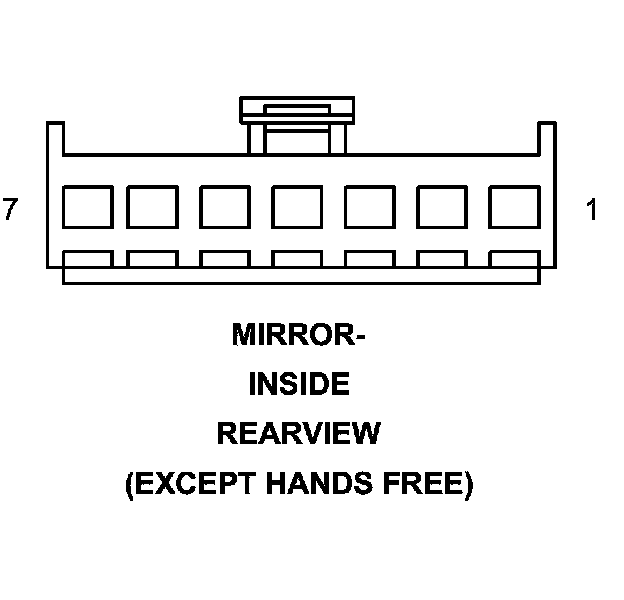

Connector (EXCEPT HANDS FREE) - (OVERHEAD) 7 WAY

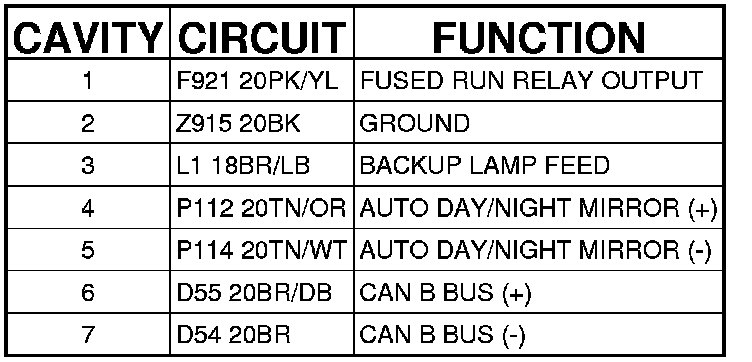

MIRROR-INSIDE REARVIEW (EXCEPT HANDS FREE) - (OVERHEAD) 7 WAY
