Lower

REMOVAL

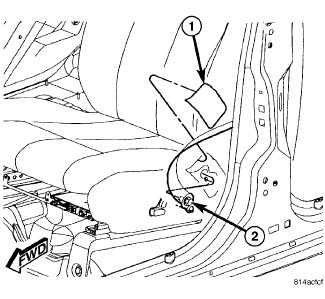

1. Adjust the front seat to its most forward position for easiest access to the front seat belt lower anchor cover (1) and the B-pillar trim.
2. Grasp the upper edge of the lower anchor cover and pull upward to unsnap it from the front seat cushion outboard side shield.
3. Remove the screw (2) that secures the lower anchor to the outboard side of the front seat cushion frame and position the seat belt out of the way.





4. Remove the front door sill scuff plate, Scuff Plate - Removal.
5. Remove the rear passenger door sill scuff plate, Scuff Plate - Removal.





6. Remove the upper B-pillar trim panel, B-Pillar Trim Panel-Removal.





7. Open the access door on the lower B-pillar trim panel.

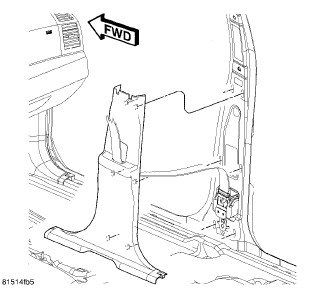

8. Using a trim stick C-4755 or equivalent, disengage the retaining tabs that secure the lower B-pillar trim panel to the B-pillar.
9. Remove the seat belt from the lower B-pillar trim panel through the access door opening and remove the trim panel.
