Upper

INSTALLATION





1. Position the upper b-pillar trim panel (1) to the b-pillar and engage the lower retaining tabs (2) that secure the trim panel to the lower b-pillar trim.
2. Rotate the top part of the trim panel into position and install the screw.






CAUTION: The upper trim plug must be removed and discarded to gain access to the upper retaining screw before attempting to remove the trim panel. Failure to remove the trim screw may result in damage to the trim panel or the retaining clip.

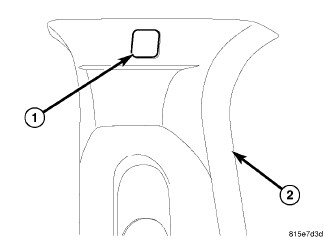

3. Install a new trim plug (1) into the trim panel (2).

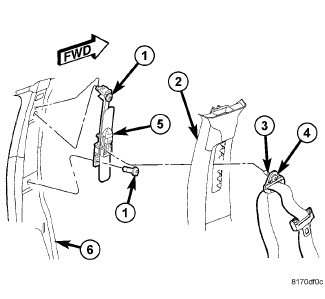

4. Position the seat belt turning loop (4) onto the height adjuster (5) on the upper b-pillar. Be certain that the seat belt webbing between the retractor and the turning loop is not twisted.
5. Install the screw (3) that secures the turning loop to the height adjuster. Tighten the screw to 39 Nm (29 ft. Lbs.).

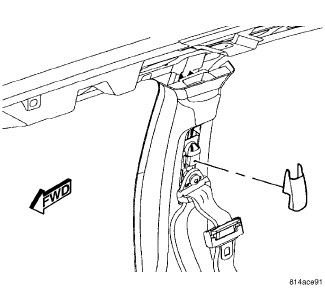

6. Insert the upper tabs of the turning loop trim cover into the slots of the height adjuster on the upper b-pillar, then lower the bottom of the cover and use hand pressure to press firmly and evenly on the cover until it snaps into place.
