Load Floor Latch - Installation






INSTALLATION

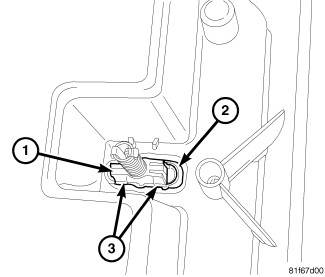

1. Install new latches (1) through the load floor hole (2) and seat the clips (3) fully.
2. Install the load floor, Load Floor - Installation.
