Scuff Plate - Installation
>>
Door
Door
INSTALLATION
1.

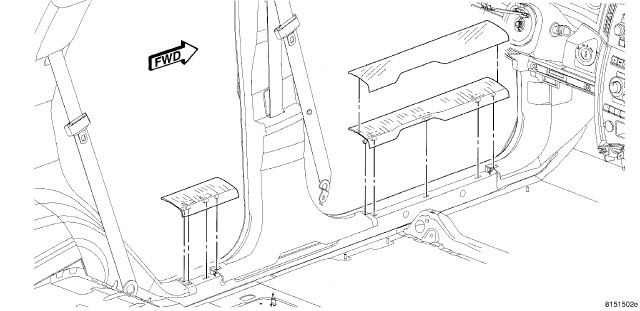

Align the retaining tabs on the door sill
scuff plate
with the retaining clips in the door sill and engage the retaining tabs that secure the scuff plate to the door sill.
