Carpet - Installation

INSTALLATION

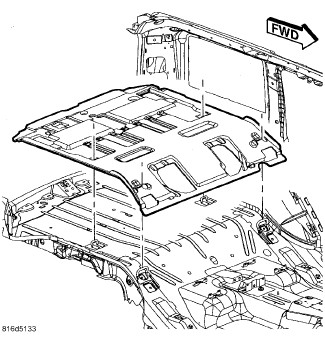

1. Install the rear carpet.

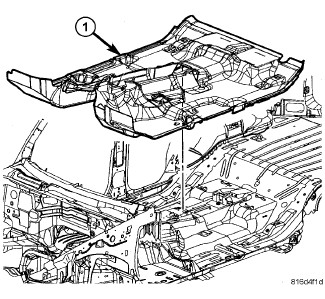

2. Install the front carpet.

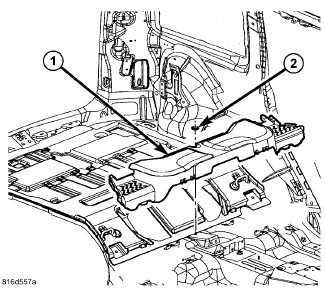

3. Install the module housing (1) and install the nut.
4. Position the modules back into the housing.

5. Install the floor console Floor Console - Installation.
6. Install the front seats Seat - Installation.
7. Install the sill covers Scuff Plate - Installation.
8. Install the cowl trim panels Cowl Trim Panel - Installation.
9. Install the lower B-pillar trim B-Pillar Trim Panel-Installation.
10. Install the rear quarter trim panels. Quarter Trim Panel - Installation.
11. Instal the third row seats Seat - Installation.
12. Install the second row seats Seat - Installation.
