Front Fender - Installation

INSTALLATION

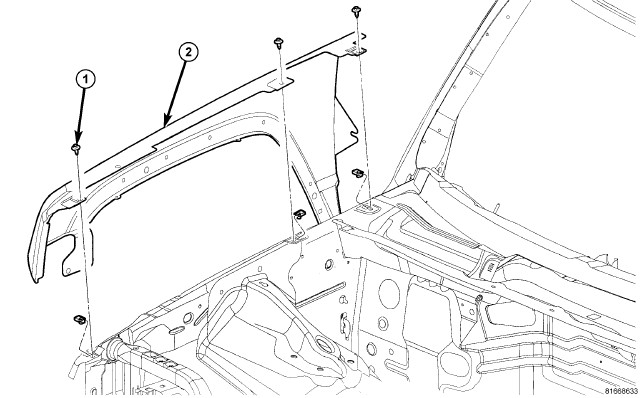

1. Position fender (2) on body.
2. Install all screws finger-tight.





3. Align fender with adjacent body panels and reference marks.
4. Tighten all screws to 8.5 Nm (75 in. lbs.).
5. Install rocker panel cover as necessary.

Antenna

If required, install the antenna from the fender.

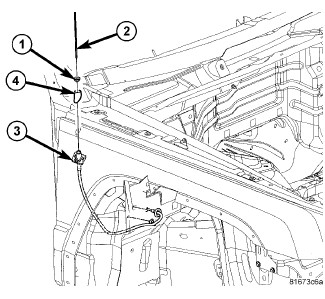

1. Position the antenna body (3) through the mounting hole in the top of the fender.
2. Install the adapter (4) over the antenna body from the top of the fender.
3. Install and tighten the antenna cap nut (1) using an antenna nut wrench (Special Tool C-4816).
4. Install and tighten the antenna mast (2) onto the antenna body. Ensure that the antenna mast is fully seated on antenna base and that there is no gap between the mast and base.





5. Install front fascia (1) as necessary, Front Bumper Fascia - Installation.

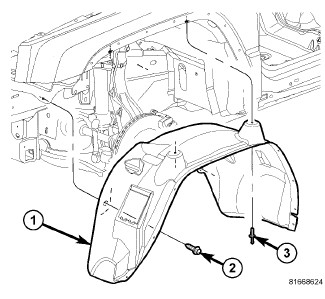

6. Install wheel liner, Splash Shield - Installation
7. Install wheel if removed.
