Body Cladding - Removal
Body Cladding - Removal

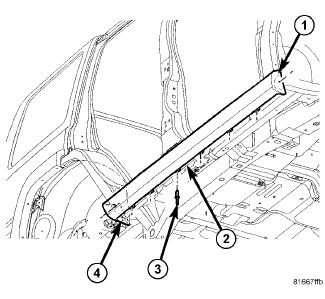

REMOVAL
1.
Remove the font (1) and rear (4) rivets from the wheel wells.
2.
Remove the six lower rivets (3).
3.
Remove the sill cladding (4).
