Latch - Installation

INSTALLATION

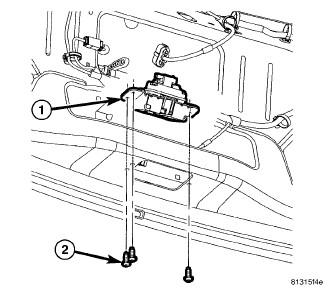

1. Position the latch (1) onto the inside of the liftgate.
2. Install and tighten the three bolts (2) that secure the latch (1) to the studs on the inside of the liftgate.
3. Tighten the bolts to 12 Nm (9 ft. lbs.).





4. Connect the latch release cable to the handle and seat the support clips.

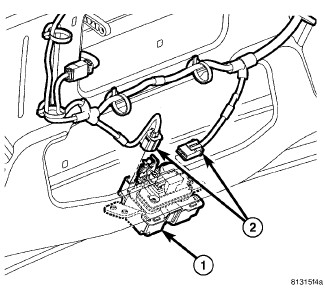

5. Connect electrical connectors (2) to the latch (1).





6. Position the watershield back.
7. Install the trim panel. Liftgate Trim Panel - Installation
8. Connect the battery negative cable.
