Front Fascia Support Bracket - Installation






INSTALLATION

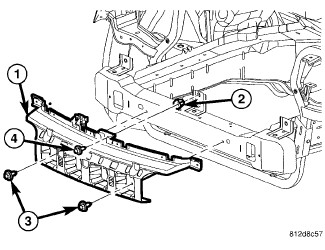

1. Position the fascia mounting bracket (1) over the bumper beam.
2. Install the push pin fasteners (4) and screws (3).
3. Install the fascia. Front Bumper Fascia - Installation
