Trailer Tow Connector - Removal

REMOVAL





1. Disconnect and isolate the battery negative cable.

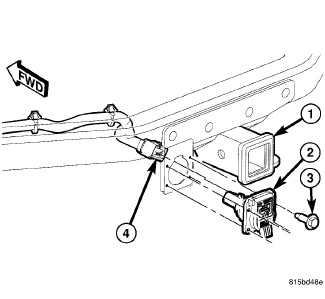

2. Reach behind the connector bracket on the left side of the trailer hitch receiver (1) to access and disconnect the connector (4) of the underbody wire harness from the 7-way trailer tow connector (2).
3. Remove the four screws (3) that secure the 7-way trailer tow connector to the bracket.
4. Remove the 7-way trailer tow connector from the bracket.
