Speaker - Removal

REMOVAL

FRONT DOOR





1. Disconnect and isolate the battery negative cable.
2. Remove front door trim panel Front Door Trim Panel - Removal.

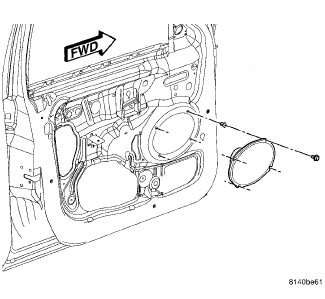

3. Remove mounting fasteners.





4. Remove speaker from door.

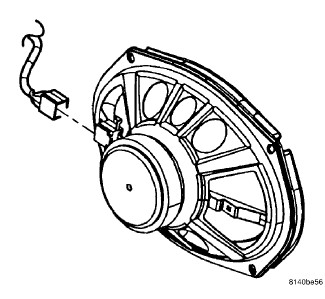

5. Disconnect wire harness connector from speaker.

INSTRUMENT PANEL





WARNING: Disable the airbag system before attempting any steering wheel, steering column, seat belt tensioner, side airbag or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable. Wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to follow these instructions may result in accidental airbag deployment and possible serious or fatal injury.

1. Disconnect and isolate the battery negative cable.

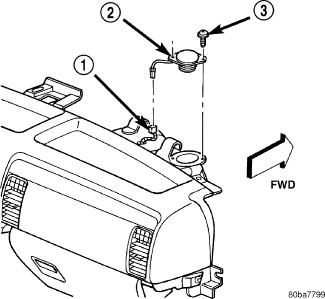

2. Remove speaker grille from instrument panel.





3. Remove speaker from instrument panel.
4. Disconnect wire harness connector from speaker.

REAR DOOR





1. Disconnect and isolate the battery negative cable.
2. Remove rear door trim panel Rear Door Trim Panel - Removal.

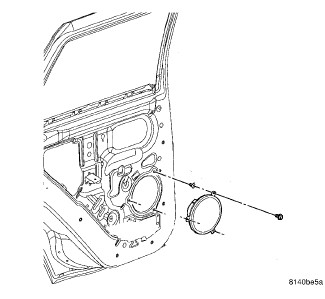

3. Remove mounting fasteners.





4. Remove speaker from door.

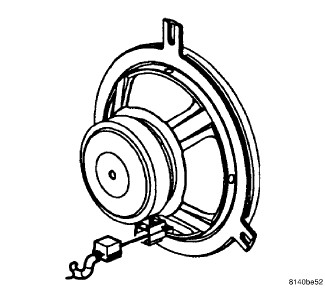

5. Disconnect wire harness connector from speaker.
