Speaker - Installation

INSTALLATION

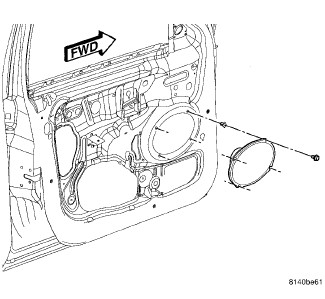

FRONT DOOR

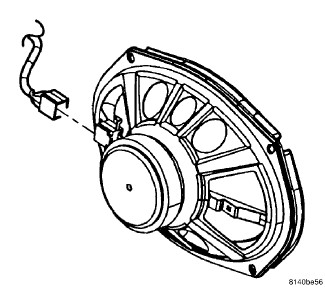

1. Connect wire harness connector to speaker.
2. Position speaker to door.





3. Install and tighten mounting fasteners.
4. Install front door trim panel.
5. Connect battery negative cable.

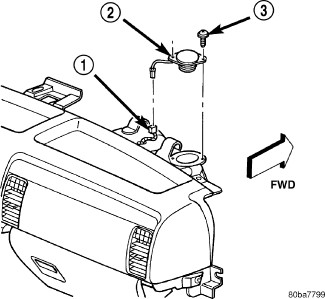

INSTRUMENT PANEL





1. Connect wire harness connector to speaker.
2. Position speaker to instrument panel.





3. Install and tighten mounting fasteners.
4. Install speaker grille.
5. Connect battery negative cable.

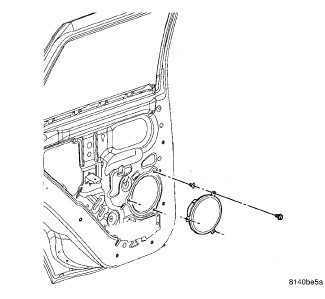

REAR DOOR

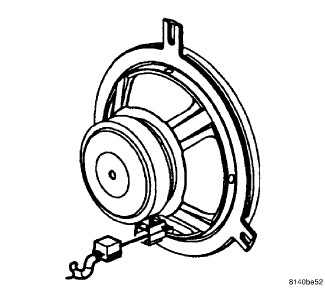

1. Connect wire harness connector to speaker.
2. Position speaker to door.





3. Install and tighten mounting fasteners.
4. Install rear door trim panel.
5. Connect battery negative cable.
