Home >> Jeep Truck >> 2009 >> Commander 4WD V8-4.7L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Amplifier >> Description and Operation >> Amplifier - Description

Amplifier - Description






DESCRIPTION

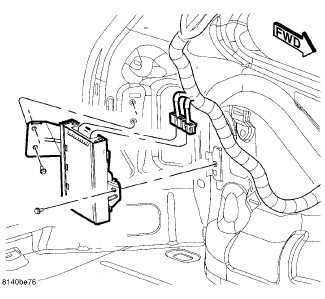

Vehicles equipped with the Boston Acoustics speaker package have a separate amplifier unit. The amplifier is rated at 288 watts. The amplifier is mounted to the left rear quarter panel behind the quarter trim panel.
