Front

FRONT

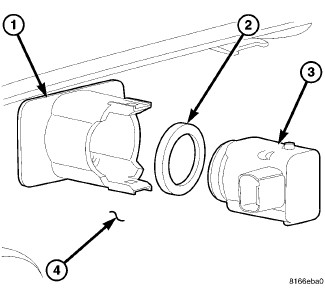

NOTE: The park assist sensors (3) and the sensor spacers (2) are each available for separate service replacement. The sensor brackets (1) are bonded and integral to the back side of the front bumper fascia (4).

1. Disconnect and isolate the battery negative cable.
2. Remove the bumper fascia from the front of the vehicle. Front Bumper Fascia - Removal.
3. From the back of the fascia (4), disconnect the wire harness connector from the park assist sensor (3) connector receptacle.
4. Carefully pry the sensor bracket (1) latch features away from the top and bottom tabs of the sensor far enough to disengage the sensor from the bracket.
5. Disengage the O-ring spacer (2) from around the circumference of the sensor membrane protrusion.
