Hands Free Module (HFM) - Installation

INSTALLATION





1. Position hands free module to the mounting bracket.
2. Install and tighten mounting fasteners.

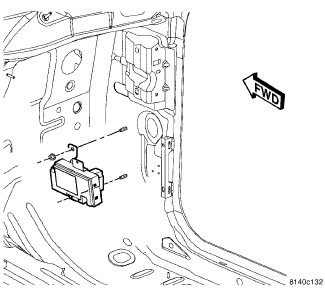

3. Position mounting bracket and module to side cowl panel.
4. Install and tighten mounting fasteners.

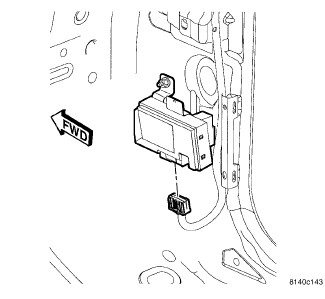

5. Connect wire harness connector.
6. Install side cowl panel trim.
7. Connect battery negative cable.
