Vehicle Theft Security Siren Bracket - Installation

BRACKET

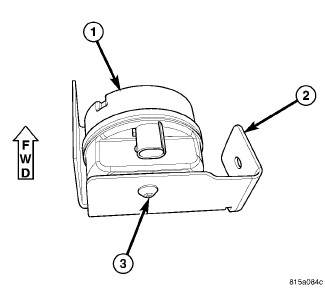

1. Position the alarm siren module (1) with the threaded insert in the siren aligned with the mounting hole in the back of the bracket (2).
2. Install and tighten the screw (3) that secures the bracket to the siren. Tighten the screw to 14 Nm (10 ft. lbs.).
3. Reinstall the siren and bracket as a unit into the hollow on the back of the right end of the front frame crossmember outboard of the right frame rail. Vehicle Theft Security Siren - Installation.
