Satellite Radio Antenna Mast - Description






DESCRIPTION

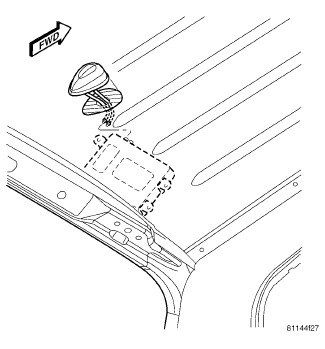

The satellite radio antenna is secured by a threaded fastener and two retainers which protrude through a hole in the roof panel. Two wires from the antenna are connected to the satellite receiver module.
