Antilock Brake Module (ABS)

U0429-IMPLAUSIBLE DATA RECEIVED FROM SCM

For a complete wiring diagram, refer to the Wiring Information Electrical Diagrams.

- When Monitored:
Continuously with the ignition on, one valid CAN message received at least once, and no U0002-CAN C Bus Off Performance DTC present.

- Set Condition:

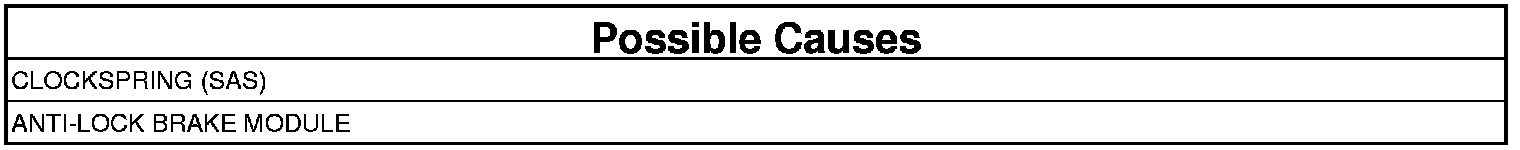

When the Anti-Lock Brake Module detects an incorrect CAN message from the Steering Angle Sensor (SAS) for approximately 200 mSec.





CHECK IF STEERING ANGLE SENSOR DTCS ARE PRESENT
1. With the scan tool, read Steering Angle Sensor DTCs.

Are there any Steering Angle Sensor DTCs present?

Yes

- Refer to the Clockspring electrical diagnostics and diagnose the appropriate test.
- Perform the BODY VERIFICATION TEST. Body Verification Test

No

- Replace the Anti-Lock Brake Module.
- Perform the ABS VERIFICATION TEST. ABS Verification Test.
