P0694

P0694-COOLING FAN 2 RELAY CONTROL CIRCUIT HIGH





For a complete wiring diagram refer to the Wiring Information Electrical Diagrams.

- When Monitored:
Ignition on with the Cooling Fan No.2 Relay powered on.

- Set Condition:

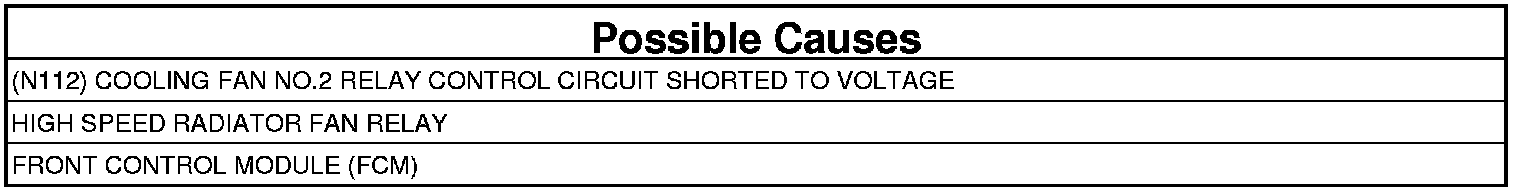

The FCM detects the Cooling Fan No.2 Relay voltage above the acceptable voltage at the FCM. The circuit is continuously monitored.





Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. Pre-Diagnostic Troubleshooting Procedure.

1. LOW SPEED RADIATOR FAN RELAY OPERATION
1. Ignition on, engine not running.
2. With a scan tool, actuate the High Speed Radiator Fan Relay.

Is the Cooling Fan Relay operating?

Yes

- Refer to the INTERMITTENT CONDITION Diagnostic Procedure. . Intermittent Condition Test

No

- Go To 2

2. (N112) COOLING FAN NO.2 RELAY CONTROL CIRCUIT SHORTED TO VOLTAGE




1. Turn the ignition off.
2. Remove the High Speed Radiator Fan Relay.
3. Disconnect the IPM FCM 49 way harness connector.
4. Ignition on, engine not running.

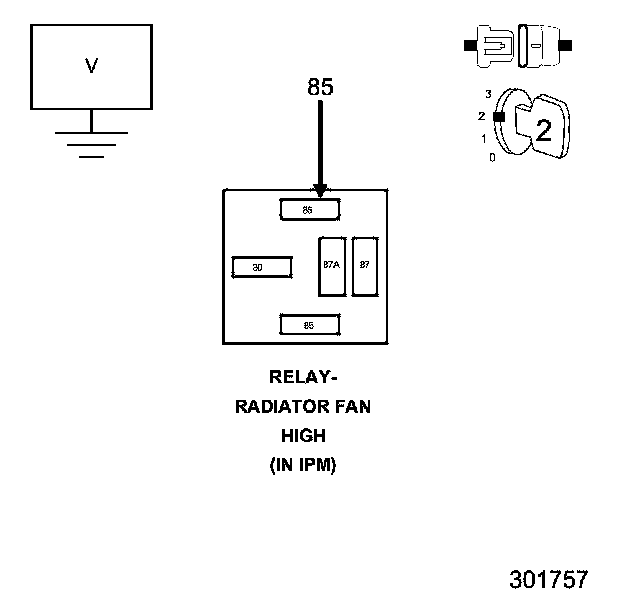

5. Measure the voltage on the (N112) Cooling Fan No.2 Relay Control Circuit at the Relay terminal.

Is there any voltage present?

Yes

- Repair the short to voltage in the (N112) Cooling Fan No.2 Relay Control circuit.
- Perform BODY VERIFICATION TEST. Body Verification Test.

No

- Go To 3

3. HIGH SPEED RADIATOR FAN RELAY RESISTANCE
1. Measure the resistance of the High Speed Radiator Fan Relay Coil.

Is the resistance between 60 to 80 ohms?

Yes

- Go To 4

No

- Replace the High Speed Radiator Fan Relay.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test

4. FRONT CONTROL MODULE (FCM)
1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Cooling Fan Relay and the Front Control Module (FCM).
2. Look for any chafed, pierced, pinched, or partially broken wires.
3. Look for broken, bent, pushed out or corroded terminals. Verify that there is good pin to terminal contact in the Cooling Fan Relay and Front Control Module connectors.
4. Search for any Technical Service Bulletins that may apply.

Were there any problems found?

Yes

- Repair as necessary.
- Perform BODY VERIFICATION TEST. Body Verification Test.

No

- Replace Front Control Module.
- Perform BODY VERIFICATION TEST. Body Verification Test.
