P0604

P0604-INTERNAL CONTROL MODULE RAM

For a complete wiring diagram, refer to the Wiring Information Electrical Diagrams.

Theory of Operation

After the controller is reset (ignition turned to the RUN position), the microprocessor checks the integrity of each RAM location by writing to it and reading back from it. The read value should be same as value written.

- When Monitored:
One time after the controller is reset (ignition turned to the RUN position).

- Set Condition:
Whenever the Powertrain Control Module (PCM) detects an internal controller problem.





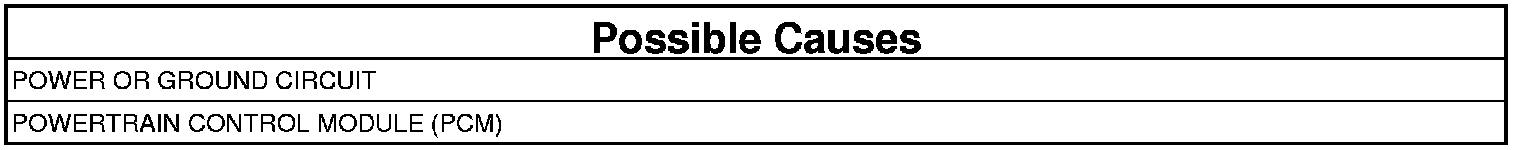

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. Pre-Diagnostic Troubleshooting Procedure.
CHECK WIRING AND CONNECTORS FOR INTERMITTENT OPERATION
1. Using the schematics as a guide, check the Powertrain Control Module (PCM) terminals for corrosion, damage, or terminal push out. Pay particular attention to all power and ground circuits.
2. Wiggle the wires while checking for shorted and open circuits.
3. Check for any Service Bulletins that may apply.

Were there any problems found?

Yes

- Repair the power and/or ground circuits to the PCM and Transmission Control Relay or TIPM (if equipped) as necessary.
- Perform the 545RFE TRANSMISSION VERIFICATION TEST. . Transmission Verification Test

No

- Replace the PCM. With the scan tool, perform Quick Learn. Quick Learn Procedure
- Perform the 545RFE TRANSMISSION VERIFICATION TEST. . Transmission Verification Test
