Video Entertainment System, Three (VES3)

B222C-VEHICLE CONFIGURATION NOT PROGRAMMED

For a complete wiring diagram, refer to the Wiring Information Electrical Diagrams.

- When Monitored:
With the ignition on.

- Set Condition:
Vehicle configuration information not programmed into the Instrument Cluster.





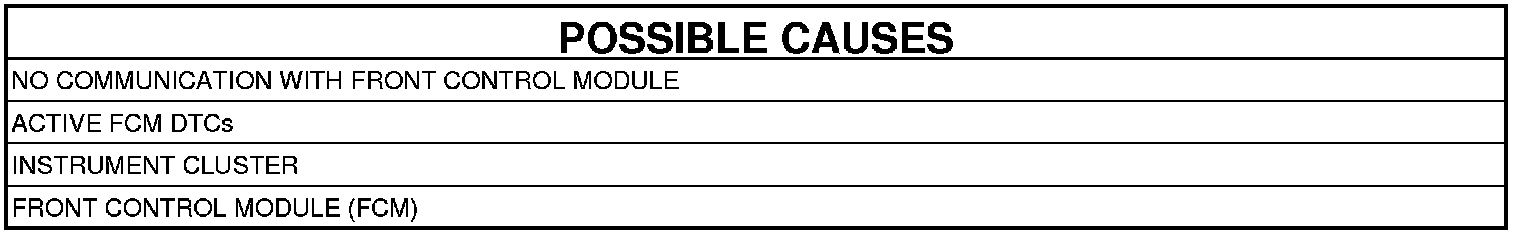

1. TEST FOR AN INTERMITTENT CONDITION
1. Turn the ignition on.
2. With the scan tool, record and erase any Instrument Cluster DTCs.
3. Turn the ignition off, wait ten seconds then turn the ignition on.
4. With the scan tool, read DTCs.

Does the scan tool display: B222C-VEHICLE CONFIGURATION NOT PROGRAMMED?

Yes

- Go To 2

No

- The condition that caused this code to set is not present at this time. Using the wiring diagram as a guide, inspect the wiring and connectors for an intermittent condition. Operate the system several times and recheck for active DTCs.
- Perform the BODY VERIFICATION TEST. Body Verification Test

2. VERIFY COMMUNICATION WITH FRONT CONTROL MODULE (FCM)
1. With the scan tool in ECU VIEW, read active modules on the bus.

Does the scan tool show the Front Control Module active on the bus?

Yes

- Go To 3

No

- Perform the No Response with FCM diagnostic procedure. No Response From FCM (Front Control Module)

3. CHECK FRONT CONTROL MODULE FOR ACTIVE DTCS
1. With the scan tool, erase FCM DTCs.
2. Turn the ignition off. Wait approximately ten seconds.
3. Turn the ignition on.
4. With the scan tool, read FCM DTCs.

Are any active DTCs present?

Yes

- Testing and Inspection Perform the appropriate diagnostic procedure.

No

- Go To 4

4. CHECK CLUSTER VEHICLE INFORMATION WITH SCAN TOOL
1. With the scan tool in Cluster ECU Identification, read the Original and Current VINs, and the Body Style of the vehicle.

Does the information displayed match the vehicle?

Yes

- Replace the Instrument Cluster.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Replace the Front Control Module.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
