Occupant Restraint Controller (ORC)

B210E-BATTERY VOLTAGE HIGH





For a complete wiring diagram, refer to the Wiring Information Electrical Diagrams.

- When Monitored:
While the Occupant Restraint Controller (ORC) CAN bus ignition status received is RUN or Signal Not Available (SNA), the module checks the (F100) Fused Run relay Output circuit and (F201) Fused Ignition Switch Output (Run/Start) circuit voltage input range.

- Set Condition:
If the module detects that the battery voltage is greater than or equal to 24.25 volts ± 0.25 volts for 10 seconds.





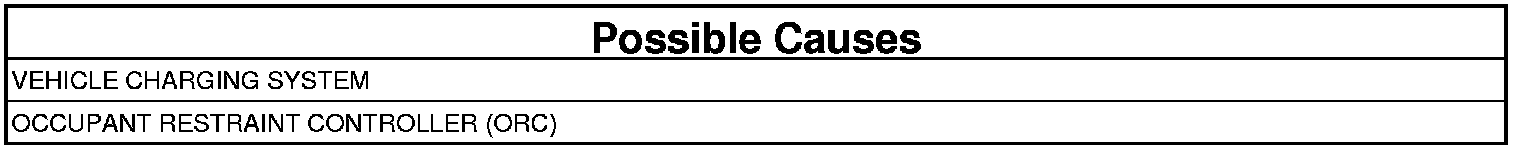

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. Restraints System Pre-Diagnostic Procedure .

1. CHECK FOR AN ACTIVE DTC
1. Turn the ignition on, then off, and then on again.
2. With the scan tool, read ORC DTCs.

Does the scan tool display active: B210E-BATTERY VOLTAGE HIGH?

Yes

- Go To 2

No

- Perform the RESTRAINTS SYSTEM INTERMITTENT TEST. . Restraints System Intermittent Condition Test

2. CHECK THE BATTERY VOLTAGE TO THE OCCUPANT RESTRAINT CONTROLLER
1. With the scan tool, read ORC battery voltage.

Is the battery voltage greater than 24.0 volts?

Yes

- Go To 3

No

- Replace the ORC.
- Perform the ORC VERIFICATION TEST. Occupant Restraint Controller (ORC) Verification Test.

3. CHECK FOR CHARGING SYSTEM RELATED DTC IN THE POWERTRAIN CONTROL MODULE (PCM)
1. With the scan tool, select PCM and check for any Charging System related DTCs.

Does the scan tool display any Charging System related DTCs?

Yes

- Diagnose and repair the DTCs.Testing and Inspection.

No

- Replace the ORC.
- Perform the ORC VERIFICATION TEST. Occupant Restraint Controller (ORC) Verification Test.
