B1A24

B1A24-KEY NOT PROGRAMMED

For a complete wiring diagram, refer to the Wiring Information Electrical Diagrams.

- When Monitored:
With the ignition switch on.

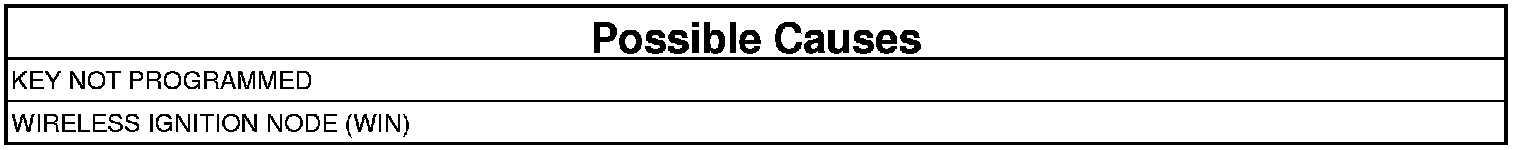

KEY NOT PROGRAMMED
1. Turn the ignition on.
2. Using a scan tool, attempt to program the key(s) into the WIN.

Was the programming of the key(s) successful?

Yes

- Programming of the key(s) were successful. Test complete.
- Perform the WIN VERIFICATION TEST. Vehicle Theft Security Verification Tests

No

- Replace the ignition key and attempt to program it into the WIN. If the DTC resets, replace and program the Wireless Ignition Node. NOTE: If this vehicle is equipped with a Steering Column Lock Module, it must be replaced along with the WIN.

- Perform the WIN VERIFICATION TEST. Vehicle Theft Security Verification Tests
