B1630

B1630-RIGHT LOW BEAM CONTROL CIRCUIT HIGH

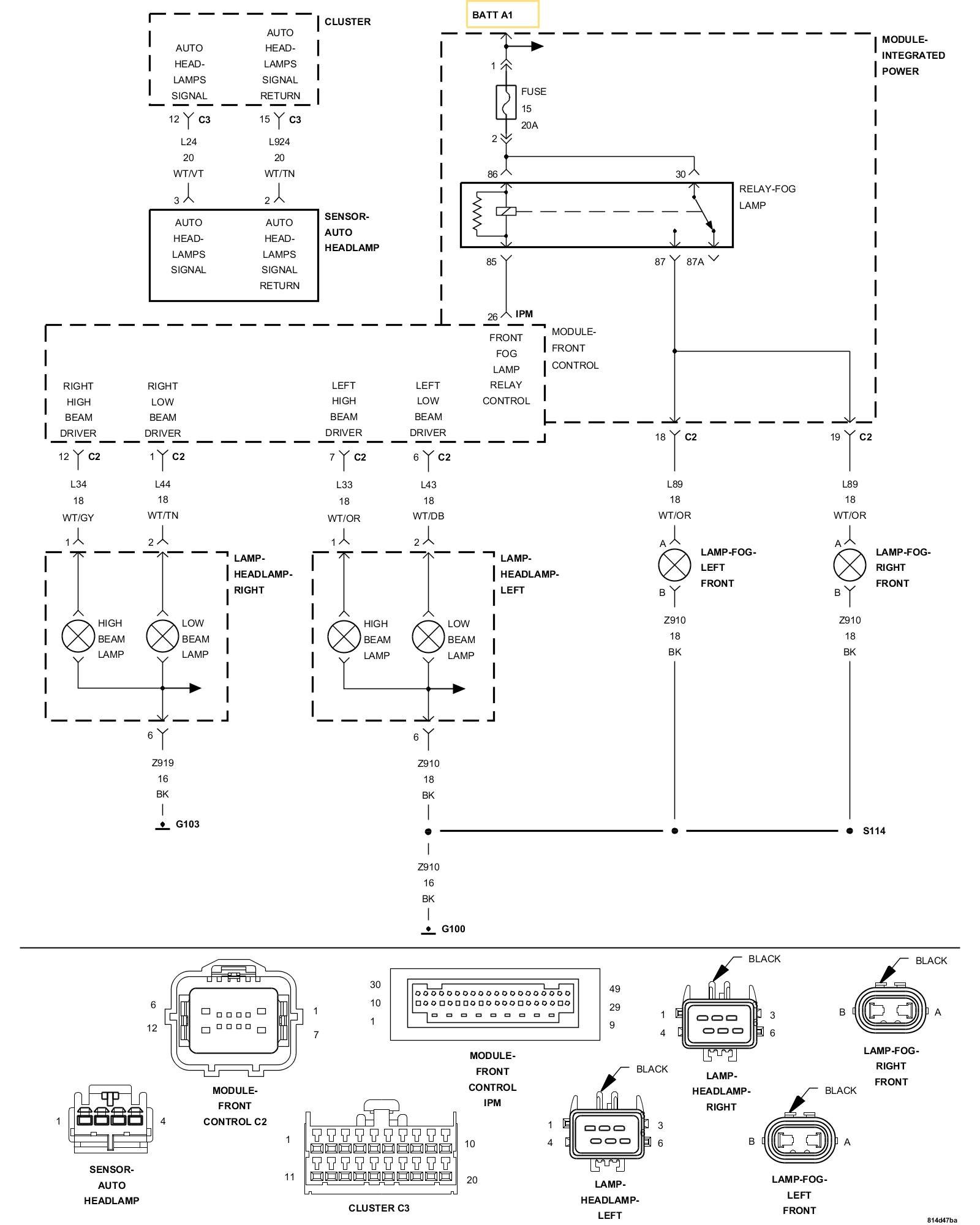

For a complete wiring diagram, refer to the Wiring Information Electrical Diagrams.

- When Monitored:
With the Headlamps activated.

- Set Condition:
When the Front Control Module (FCM) detects a HIGH condition.





1. INTERMITTENT CONDITION
1. Turn the ignition on.
2. Using the scan tool, clear all FCM DTCs.
3. Turn the Headlamps on.
4. With the scan tool read the DTC information.

Does the scan tool read: B1630-RIGHT LOW BEAM CONTROL CIRCUIT HIGH?

Yes

- Go To 2

No

- The condition that caused the symptom is currently not present. Inspect the related wiring for a possible intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

2. RIGHT LOW BEAM BULB
1. Turn the ignition off.
2. Inspect the Right Low Beam Bulb Assembly.

Is the inoperative bulb OK?

Yes

- Go To 3

No

- Replace the Inoperative bulb.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

3. (L44) RIGHT LOW BEAM CONTROL CIRCUIT




1. Turn the ignition off.

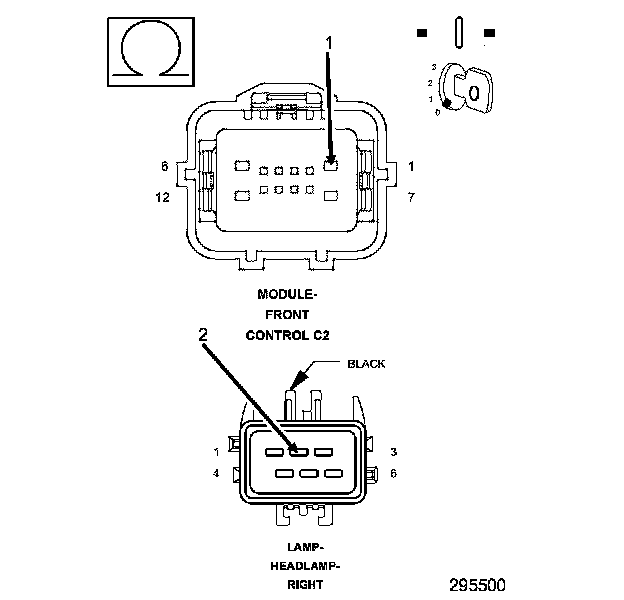

2. Disconnect the FCM C2 harness connector.
3. Measure the resistance of the (L44) Right Low Beam Control circuit.

Is the resistance above 5.0 Ohms?

Yes

- Repair the (L44) Right Low Beam Control circuit for an open condition.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Replace the Front Control Module (FCM).
- Perform the BODY VERIFICATION TEST. Body Verification Test.
