B1609

B1609-PANEL DIMMER INPUT CIRCUIT/PERFORMANCE

For a complete wiring diagram, refer to the Wiring Information Electrical Diagrams.

- When Monitored:
With the ignition on. Headlamps activated.

- Set Condition:
Panel Dimmer Input circuit incorrect performance.





CHECK FOR AN ACTIVE DTC

NOTE: Before proceeding with this diagnostic procedure, verify the Left and Right Multifunction Switch and Clockspring harness connectors are properly seated and verify proper pin terminal tension. A loose connection at any of these connectors may cause this DTC to set.

1. Turn the ignition on.
2. With the scan tool, record and erase DTCs.
3. Wait 30 seconds.
4. With the scan tool, read DTCs.

Does the scan tool display: B1609-PANEL DIMMER INPUT CIRCUIT/PERFORMANCE?

Yes

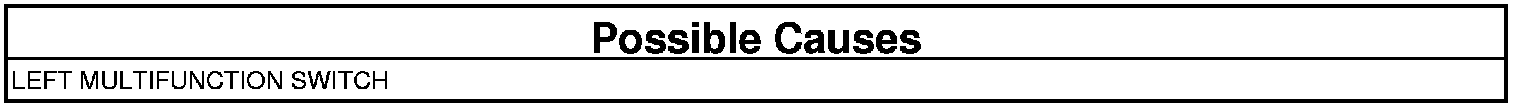

- Replace the Left Multifunction Switch.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the wiring diagrams as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals, and correct pin tension.
