B1201

B1201-AIRBAG WARNING INDICATOR CIRCUIT OPEN

For a complete wiring diagram, refer to the Wiring Information Electrical Diagrams.

- When Monitored:
With the ignition on and when requested to turn on by the Occupant Restraint Controller (ORC).

- Set Condition:
The Instrument Cluster software detects the voltage across the Airbag Lamp is above 4.0 volts when ON.





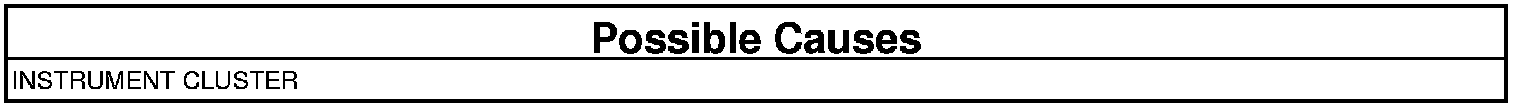

CHECK FOR AN ACTIVE DTC

NOTE: The Instrument Cluster performs internal tests on the Airbag Lamp during each ignition cycle.

1. With the scan tool, erase DTCs.
2. Turn the ignition off, wait 10 seconds, then turn the ignition on.
3. Wait for the Instrument Cluster to perform the bulb check.
4. With the scan tool, read DTCs.

Is the DTC active?

Yes

- Replace and program the Instrument Cluster.
- Perform the BODY VERIFICATION TEST Body Verification Test.

No

- Test complete.
